capillary tube 3,4 x 0,55 mm | oval mat distributor pipe 20 x 12 x 2,0 mm
The capillary tube mat for gluing in metal panels or on drywall ceilings with a larger exchange surface and lower installation height of the connections.
Why a larger exchange surface? Due to the oval mat distributor pipe the capillary tube mats have a larger exchange surface to the metal tile/metal panel or drywall ceiling which increases the degree of activation.
The OVAMAT is also suitable for gluing in floating ceilings.
Technical data
| MAT DESIGNATION | G 10 | U 10 |
| MATERIAL/COLOUR | Polypropylene (PP-R) recyclable/blue | Polypropylene (PP-R) recyclable/blue |
| MAT DISTRIBUTOR PIPE | 20 x 12 x 2,0 mm, oval | 20 x 12 x 2,0 mm, oval |
| CAPILLARY TUBE | 3,4 x 0,55 mm | 3,4 x 0,55 mm |
| DISTANCE A | 10 mm | 10 mm |
| LENGTH L | 600 ‐ 6000 mm in 10 mm steps | 600 ‐ 6000 mm in 10 mm steps |
| WIDTH B | as from 150 mm in 10 mm steps | as from 150 mm in 20 mm steps |
| CONNECTION TYPE | with 2 diagonal push-lock connections/with 2 lateral push-lock connections 10 mm | with 2 push-lock connections in the middle/with 2 lateral push-lock connections 10 mm |
| SPEC. WEIGHT | approx. 370 g/m² capillary tube surface | approx. 430 g/m² capillary tube surface |
| SPEC. VOLUME OF WATER | 0,370 l/m² capillary tube surface | 0,430 l/m² capillary tube surface |
| SPEC. TOTAL WEIGHT | approx. 740 g/m² capillary tube surface | approx. 860 g/m² capillary tube surface |
| PRESSURE STAGE | PN 10 | PN 10 |
| FIELD OF APPLICATION |
|
|
OVAMAT Heating and cooling mat G 10.11 | 10.20 | 10.02 | GM 10.11
| G 10.11 | GM 10.11 | |
|---|---|---|
| with 2 diagonal push-lock connections |
with 2 lateral push-lock connections and 1 middle end cap |
|
 |
 |

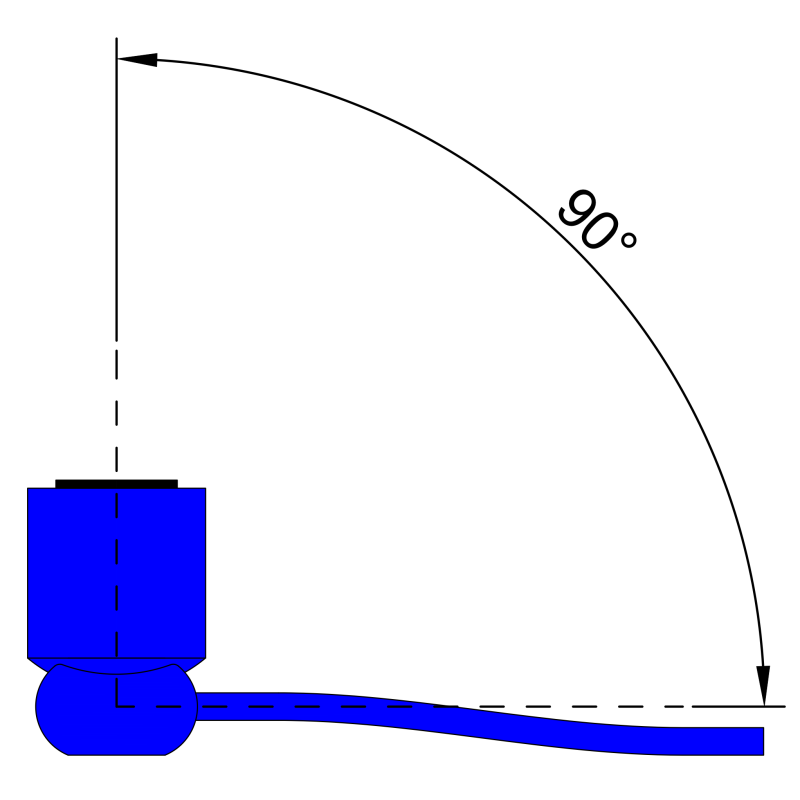

angular position push-lock connection 90° oval mat distributor pipe |
push-lock connections
| DESIGNATION | G 10.11 | GM 10.11 | G 10.20 | G 10.02 |
|---|---|---|---|---|
| DESCRIPTION |

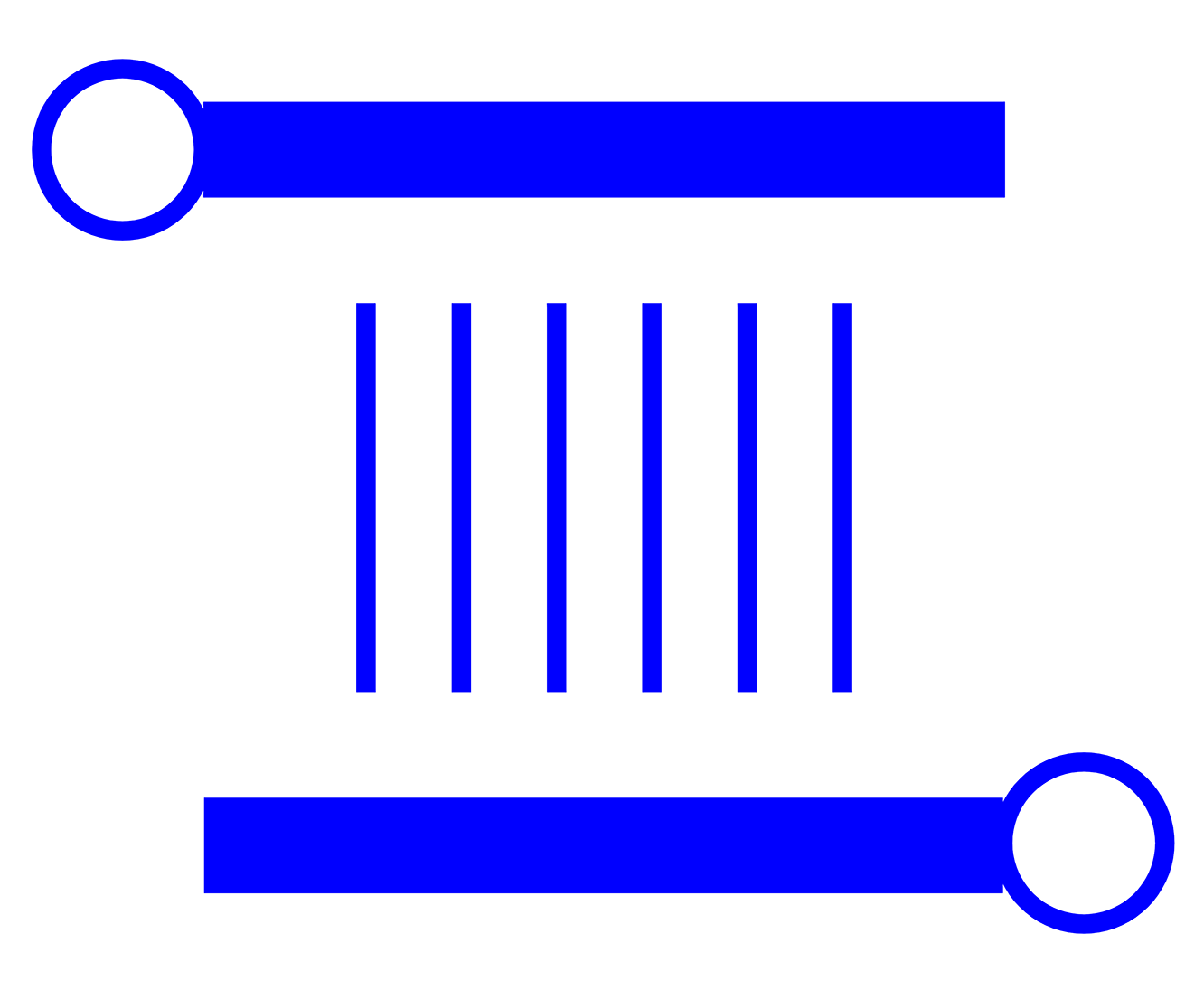

with 2 diagonal |

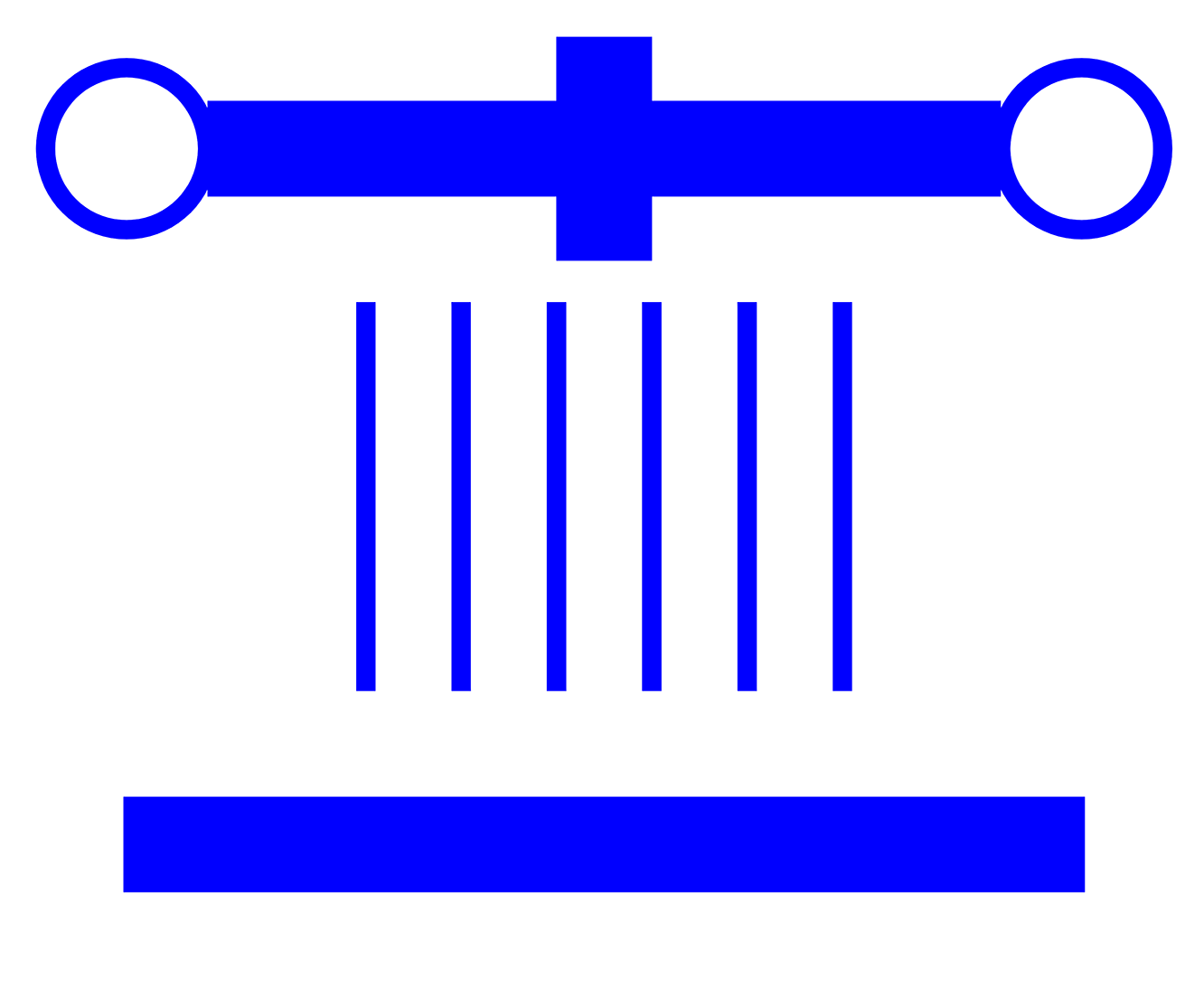

with 2 lateral push-lock connections and 1 middle end cap |

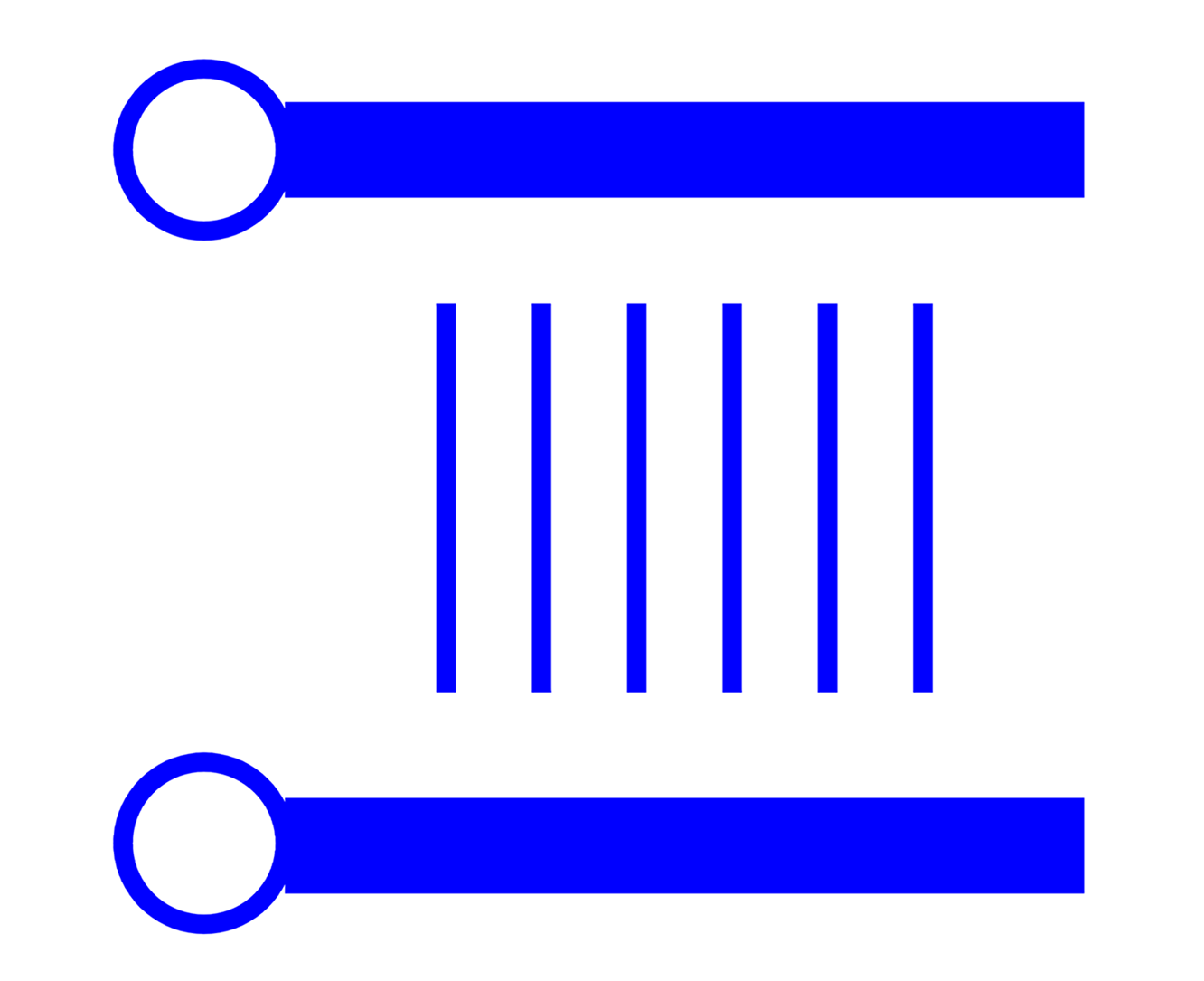

with 2 push-lock connections on the left |

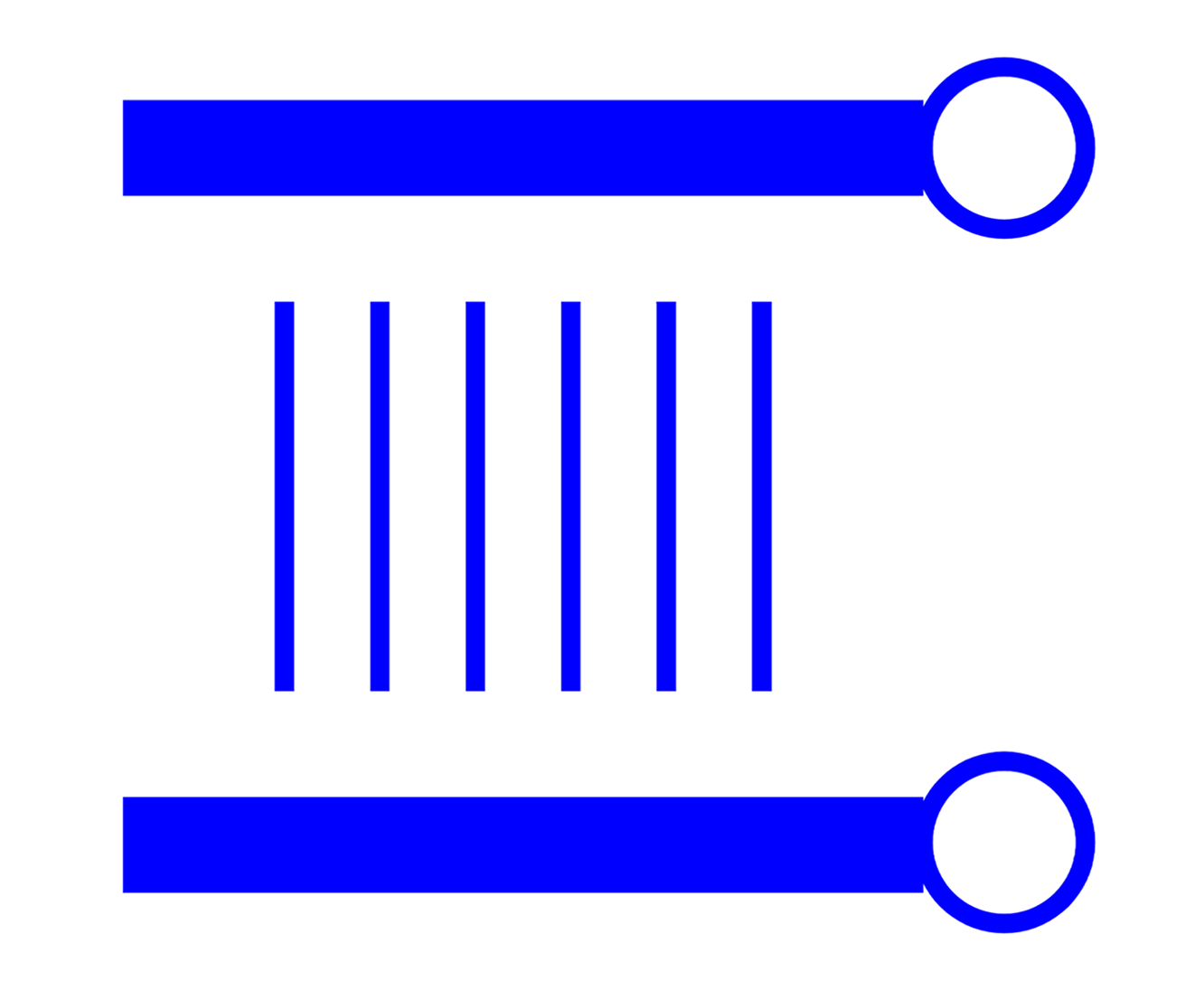

with 2 push-lock connections on the right |
|
ANGULAR POSITION PUSH-LOCK CONNECTION |
90° (standard) 0°|90°|180°|270° possible |
90° (standard) 0°|90°|180°|270° possible |
90° (standard) 0°|90°|180°|270° possible |
90° (standard) 0°|90°|180°|270° possible |
| PICTOGRAM |  |
 |
 |
 |
Field of application
- drywall ceiling |gypsum boards
- floating ceiling | floating metal ceiling
- metal ceiling | metal tiles, metal panels
- room or wall element | convector GRAVIMAT
Technical data
| MATERIAL / CLOLOUR | Polypropylene (PP-R) recyclable / blue |
| MAT DISTRIBUTOR PIPE | 20 x 12 x 2,0 mm, oval |
| CAPILLARY TUBE | 3,4 x 0,55 mm |
| DISTANCE A | 10 mm |
| LENGTH L | 600 ‐ 6000 mm in 10 mm steps |
| WIDTH B | as from 150 mm in 10 mm steps |
| CONNECTION TYPE | with 2 diagonal push-lock connections/ with 2 lateral push-lock connections 10 mm |
| SPEC. WEIGHT | approx. 370 g/m² capillary tube surface |
| SPEC. VOLUME OF WATER | 0,370 l/m² capillary tube surface |
| SPEC. TOTAL WEIGHT | approx. 740 g/m² capillary tube surface |
| PRESSURE STAGE | PN 10 |
| MAX. RECOMMENDED OPERATING PRESSURE | 4 bar |
| MAX. ALLOWED HEATING TEMPERATURE | 60 °C |
OVAMAT HEating and cooling mat U 10.11 | UM 10.11
| U 10.11 | UM 10.11 |
| with 2 push-lock connections in the middle |
with 2 lateral push-lock connections and 1 middle end cap |
 |
 |
push-lock connections
| DESIGNATION | U 10.11 | UM 10.11 |
|
| DESCRIBTION | with 2 push-lock connections in the middle |
with 2 lateral push-lock connections and 1 middle end cap |
|
|
ANGULAR POSITION |
90° (standard) 90° | 270° possible |
90° (standard) 90°| 270° possible |
|
| PICTOGRAM |  |
 |
Field of application
- floating ceiling | floating metal ceiling
- metal ceiling | metal tiles, metal panels
Technical data
| MATERIAL/COLOUR | Polypropylene (PP-R) recyclable/blue |
| MAT DISTRIBUTOR PIPE | 20 x 12 x 2,0 mm, oval |
| CAPILLARY TUBE | 3,4 x 0,55 mm |
| DISTANCE A | 10 mm |
| LENGTH L | 600 ‐ 6000 mm in 10 mm steps |
| WIDTH B | ab 150 mm in 20 mm steps |
| CONNECTION TYPE | with 2 push-lock connections in the middle/with 2 lateral push-lock connections 10 mm |
| SPEC. WEIGHT | approx. 430 g/m² capillary tube surface |
| SPEC. VOLUME OF WATER | 0,430 l/m² capillary tube surface |
| SPEC. TOTAL WEIGHT | approx. 860 g/m² capillary tube surface |
| PRESSURE STAGE | PN 10 |
| MAX. RECOMMENDED OPERATING PRESSURE | 4 bar |
| MAX. ALLOWED HEATING TEMPERATURE | 60 °C |
