capillary tube 3,4 x 0,55 mm | round mat distributor pipe 20 x 2,0 mm
The basic capillary tube mat from which all other mat types were derived. Due to the small capillary tube diameter, the ORIMAT adapts easily to surfaces.
The ORIMAT is suitable for use in drywall ceilings (metal tile ceilings, gypsum board ceilings, floating drywall ceilings) and also in acoustic plaster ceilings. In drywall ceilings, the ORIMAT is placed on gypsum board or floating drywall ceilings or integrated into metal tiles or metal panels. With the acoustic plaster ceiling BASWA Cool, the ORIMAT is integrated into the acoustic plaster.
The ORIMAT is also suitable for use in convective components (room, wall or ceiling elements). In convectors, such as the GRAVIMAT, the ORIMAT is integrated into a mounting frame, as is the case with air-water heat exchangers for recovering heat from exhaust air.
Technical data
| MAT TYPE | G 10 | S 10 | U 10 |
| MATERIAL/COLOUR | Polypropylene (PP-R) recyclable/blue | Polypropylene (PP-R) recyclable/blue | Polypropylene (PP-R) recyclable/blue |
| MAT DISTRIBUTOR PIPE | 20 x 2,0 mm, round | 20 x 2,0 mm, round | 20 x 2,0 mm, round |
| CAPILLARY TUBE | 3,4 x 0,55 mm | 3,4 x 0,55 mm | 3,4 x 0,55 mm |
| DISTANCE A | 10 mm | 10 mm | 10 mm |
| LENGTH L | 600 ‐ 6000 mm in 10 mm steps | 600 ‐ 6000 mm in 10 mm steps | 600 ‐ 6000 mm in 10 mm steps |
| WIDTH B | as from 150 mm in 10 mm steps | as from 150 mm in 20 mm steps | as from 150 mm in 20 mm steps |
| CONNECTION TYPE | with open mat distributor pipes/with 2 push-lock connections 10 mm or 15 mm | with open mat distributor pipes/with 2 push-lock connections 10 mm or 15 mm | with 2 push-lock connections in the middle/with 2 lateral push-lock connections 10 mm |
| SPEC. WEIGHT | approx. 370 g/m² capillary tube surface | approx. 370 g/m² capillary tube surface | approx. 430 g/m² capillary tube surface |
| SPEC. VOLUME OF WATER | 0,370 l/m² capillary tube surface | 0,370 l/m² capillary tube surface | 0,430 l/m² capillary tube surface |
| SPEC. TOTAL WEIGHT | approx. 740 g/m² capillary tube surface | approx. 740 g/m² capillary tube surface | approx. 860 g/m² capillary tube surface |
| PRESSURE STAGE | PN 10 | PN 10 | PN 10 |
| FIELD OF APPLICATION |
|
|
|
Orimat Heating and cooling mat G 10.00 | 10.11 | 10.20 | 10.02 | GM 10.11
| G 10.00 | G 10.11 | GM 10.11 |
| with open mat distributor pipes for welding |
with 2 diagonal push-lock connections |
with 2 lateral push-lock connections and 1 middle end cap |
 |
 |
 |
Push-lock connections
| DESIGNATION | G 10.11 | GM 10.11 | G 10.20 | G 10.02 |
|---|---|---|---|---|
| DESCRIPTION | with 2 diagonal push-lock connections |
with 2 lateral push-lock connections and 1 middle end cap |
with 2 push-lock connections on the left |
with 2 push-lock connections on the right |
| PICTOGRAM |  |
 |
 |
 |
Fields of application
- acoustic plaster ceiling |BASWA Cool
- drywall ceiling | gypsum board panels
- metal ceiling | metal tiles, metal panels
- room or wall elements | convector GRAVIMAT
Technical data
| MATERIAL/COLOUR | Polypropylene (PP-R) recyclable/blue |
| MAT DISTRIBUTOR PIPE | 20 x 2,0 mm, round |
| CAPILLARY TUBE | 3,4 x 0,55 mm |
| DISTANCE A | 10 mm |
| LENGTH L | 600 ‐ 6000 mm in 10 mm steps |
| WIDTH B | as from 150 mm in 10 mm steps |
| CONNECTION TYPE | with open mat distributor pipes/with 2 push-lock connections 10 mm or 15 mm |
| SPEC. WEIGHT | approx. 370 g/m² capillary tube surface |
| SPEC. VOLUME OF WATER | 0,370 l/m² capillary tube surface |
| SPEC. TOTAL WEIGHT | approx. 740 g/m² capillary tube surface |
| PRESSURE STAGE | PN 10 |
| MAX. RECOMMENDED OPERATING PRESSURE | 4 bar |
| MAX. ALLOWABLE HEATING TEMPERATURE | 60 °C |
Orimat HeATING AND COOLING MAT S 10.00 | 10.11 | 10.20 | 10.02
| S 10.00 | S 10.11 |
| with open mat distributor pipes for welding |
with 2 diagonal push-lock connections |
 |
 |
Push-lock connections
| DESIGNATION | S 10.00 | S 10.11 | S 10.20 | S 10.02 |
| DESCRIPTION | with open mat distributor pipes |
with 2 diagonal push-lock connections |
with 2 push-lock connections on the left |
with 2 push-lock connections on the right |

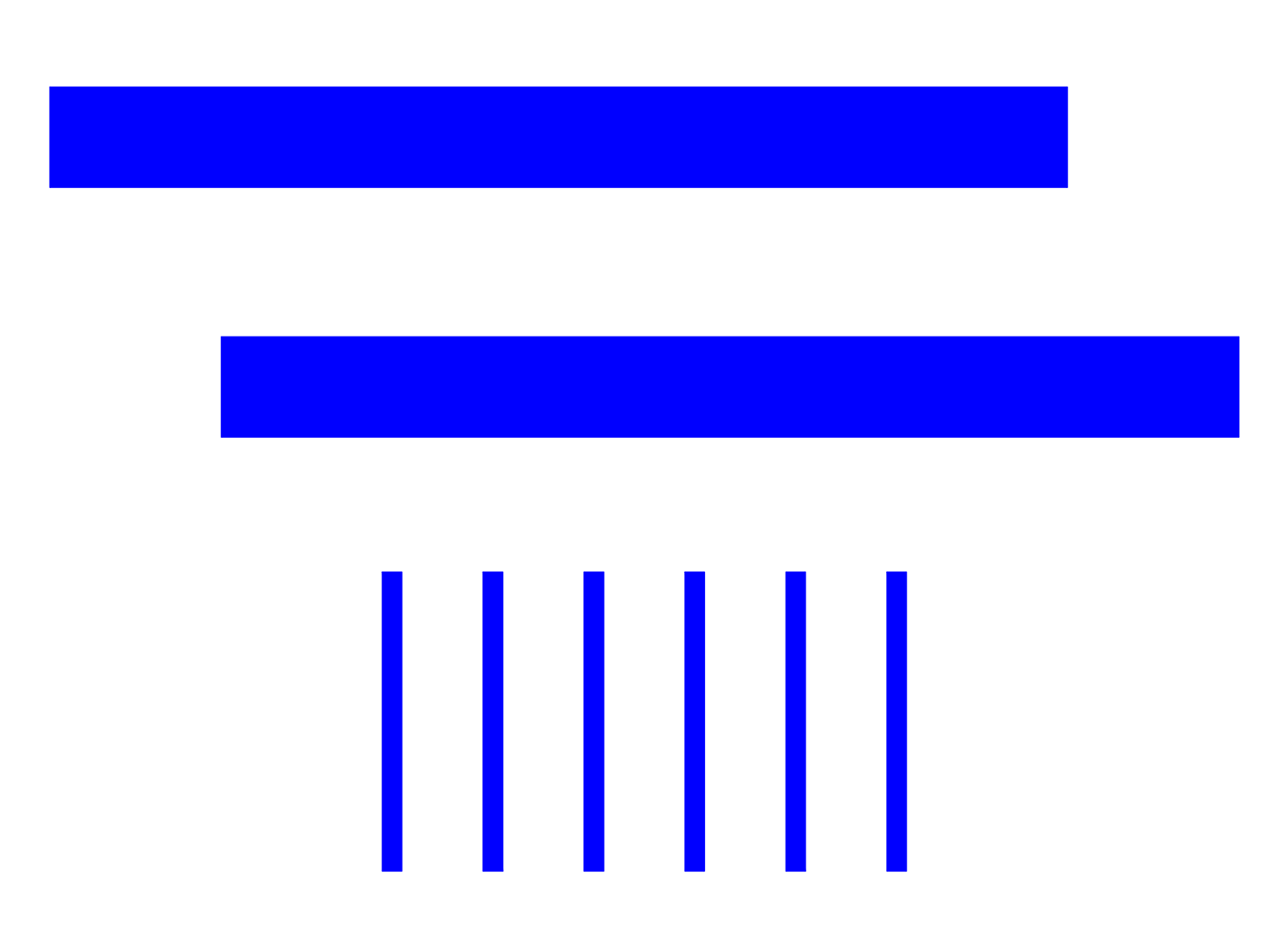

| PICTOGRAM |  |
 |
 |
 |
Fields of application
- drywall ceiling or wall | gyspsum board panels
- floating ceiling | floating drywall ceiling
- metal ceiling | metal tiles, metal panels
Technical data
| MATERIAL / COLOUR | Polypropylene (PP-R) recyclable / blue |
| MAT DISTRIBUTOR PIPE | 20 x 2,0 mm, round |
| CAPILLARY TUBE | 3,4 x 0,55 mm |
| DISTANCE A | 10 mm |
| LENGTH L | 600 ‐ 6000 mm in 10 mm steps |
| WIDTH B | as from 150 mm in 20 mm steps |
| CONNECTION TYPE | with open mat distributor pipes / with 2 push-lock connections 10 mm or 15 mm |
| SPEC. WEIGHT | approx. 370 g/m² capillary tube surface |
| SPEC. VOLUME OF WATER | 0,370 l/m² capillary tube surface |
| SPEC. TOTAL WEIGHT | approx. 740 g/m² capillary tube surface |
| PRESSURE STAGE | PN 10 |
| MAX. RECOMMENDED OPERATING PRESSURE | 4 bar |
| MAX. ALLOWABLE HEATING TEMPERATURE | 60 °C |
ORIMAT HEATING AND COOLING MAT U 10.11 | UM 10.11
| U 10.11 | UM 10.11 |
| with 2 push-lock connections in the middle |
with 2 lateral push-lock connections and 1 middle end cap |
 |
 |
Push-lock connections
| DESIGNATION | U 10.11 | UM 10.11 |  angular position push-lock connection 60° |
| DESCRIPTION | with 2 push-lock connections in the middle |
with 2 lateral push-lock connections and 1 middle end cap |
|
| ANGULAR POSITION PUSH-LOCK CONNECTION |
60° (standard) 45°- 135° possible |
60° (standard) 0°- 360° possible |
|
| PICTOGRAM |  |
 |
Fields of application
- drywall ceiling |gypsum boards
- metal ceiling | metal tiles, metal panels
Technical data
| MATERIAL/COLOUR | Polypropylene (PP-R) recyclable/blue |
| MAT DISTRIBUTOR PIPE | 20 x 2,0 mm, round |
| CAPILLARY TUBE | 3,4 x 0,55 mm |
| DISTANCE A | 10 mm |
| LENGTH L | 600 ‐ 6000 mm in 10 mm steps |
| WIDTH B | as from 150 mm in 20 mm steps |
| CONNCETION TYPE | with 2 push-lock connections in the middle/with 2 lateral push-lock connections 10 mm |
| SPEC. WEIGHT | approx. 430 g/m² capillary tube surface |
| SPEC. VOLUME OF WATER | 0,430 l/m² capillary tube surface |
| SPEC. TOTAL WEIGHT | approx. 860 g/m² capillary tube surface |
| PRESSURE STAGE | PN 10 |
| MAX. RECOMMENDED OPERATING PRESSURE | 4 bar |
| MAX. ALLOWABLE HEATING TEMPERATURE | 60 °C |
