System description

Design
The BASWAphon COOL multi-layer system is a system solution in cooperation with BASWA acoustic. BASWAphon acoustic panels are fastened underneath a concrete ceiling or a suspended gypsum board ceiling with appropriate adhesive. Clina capillary tube mats are fixed to these BASWAphon acoustic panels, tightened and then plastered with a few millimetres of a special mineral acoustic plaster. On the visible side, there is a jointless acoustic plaster ceiling for the dissipation or supply of sensitive heat loads. The water circulates noiselessly in the capillary tube mats and regulates the room temperature largely by radiation, partly by convection.

BASWAphon acoustic panel
The BASWAphon acoustic panels are available in 2 different thicknesses (46, 66 mm). This results in the total thickness of the BASWAphon Cool multi-layer system of 55 or 75 mm.

Length & Width
The capillary tube mats are custom-made in length and width for each project. On the construction site the mat distributor pipes are connected to each other by heating element socket welding.

This is a secure, non-detachable connection.

Hydraulic connection
Mat distributor pipes and supply lines are installed or accommodated on the raw ceiling within the BASWAphon Cool multi-layer system, and in the case of a suspended gypsum board ceiling, also in the ceiling void. The capillary tube mats welded together to form a hydraulic circuit are connected to the supply and return lines.

Of course, the ceiling void can also be used for further installations.


Mounting
Clina capillary tube mats are fixed tightly to the BASWAphon acoustic panel and embedded in the acoustic plaster.

Processing
The capillary tube mats can be installed by experienced installation companies.

BASWAphon Cool panels can only be processed by companies which have been trained by BASWA acoustic AG and hold a BASWAphon Cool certificate.

Lamps & Ventilation
Larger openings must be considered in the planning phase. Up to approx. 100 mm, openings can also be realised during the construction phase by simply pulling the capillary tubes apart.

Plaster
Mineral BASWAphon acoustic plaster in a multi-layer finish is used.

Regulation
The system can be regulated room-by-room.

Fields of application
Suitable for the modern interior design of rooms with special acoustic requirements, such as office buildings or public buildings, whether new construction or renovation.

Structure



Aufbau BASWAphon COOL
  • BASWAphon acoustic panels are glued and grouted to the concrete ceiling or the suspended gypsum board ceiling in the area of the active surfaces.

  • Capillary tube mats (mat distributor pipes) are fixed and tightened underneath the acoustic panel.

  • The capillary tube mats, welded together to form a hydraulic circuit, are connected to the supply and return lines by heating element socket welding.

  • Acoustic panels are added and grouted in the edge area as well as in the riser zones.

  • Filling layer with BASWAphon Cool Base of approx.
    4-5 mm is sprayed onto the capillary tube mats so that the capillary tube mats are „embedded“.

  • A top coat/base coat of 1,5-2 mm with BASWAphon Cool Base is applied.

  • A BASWAphon final coat of 0,5 mm is applied.

Recommended capillary tube mat

On site, the Clina capillary tube mat ORIMAT G 10 is integrated into the BASWAphon Cool multi-layer system.

The ORIMAT G 10 consists of 2 round mat distributor pipes (20 x 2,0 mm) and capillary tubes
(3,4 x 0,55 mm). The distance between the capillary tubes (centre-to-centre distance) is 10 mm.



to the capillary tube mat ORIMAT

ORIMAT G 10.00

Advantages

Cooling and heating with one system
In most buildings, the heat requirement to be covered is so low due to the well-insulated building envelope that capillary tube mats invisibly integrated into the acoustic plaster ceiling not only provide excellent cooling in the summer, but can also be used to heat very comfortably and energy-efficiently in the cold season.

Excellent performance values
Excellent broadband sound absorption as well as high heating/cooling capacity thanks to low mineral acoustic plaster coverage with good thermal conductivity and close to the surface position of the capillary tubes.

Acoustic and thermal function
High-quality combination for maximum room comfort.

Suitable for many architectural designs
Is suitable for horizontal, inclined, vertical surfaces and simple vaults made of concrete or gypsum board.

Jointless up to 500 m²
Up to 500 m² on plane jointless concrete surfaces or 150 m² on gypsum board .

Individual room control
The temperature can be regulated room-by-room.

Values

HEATING CAPACITY

according to DIN EN 14037/2

COOLING CAPACITY

according to DIN EN 14240

ACOUSTICS

117,7 W/m²
ΔT = 15 K, active mat surface

100,8 W/m²
ΔT = 10 K, active mat surface
weighted sound absorption coefficient
up to 𝝰W = 0,8 (Class B)

INSTALLATION HEIGHT:
depending on the type of BASWAphon acoustic panel

55 or 75 mm

SYSTEM WEIGHT:
(filled with water)

28 kg/m² or 280 N/m²

BUILDING MATERIAL CLASS:
B-s1-d0 (according to DIN EN 13501-1)

PRESSURE STAGE:
PN 10

performance diagrams

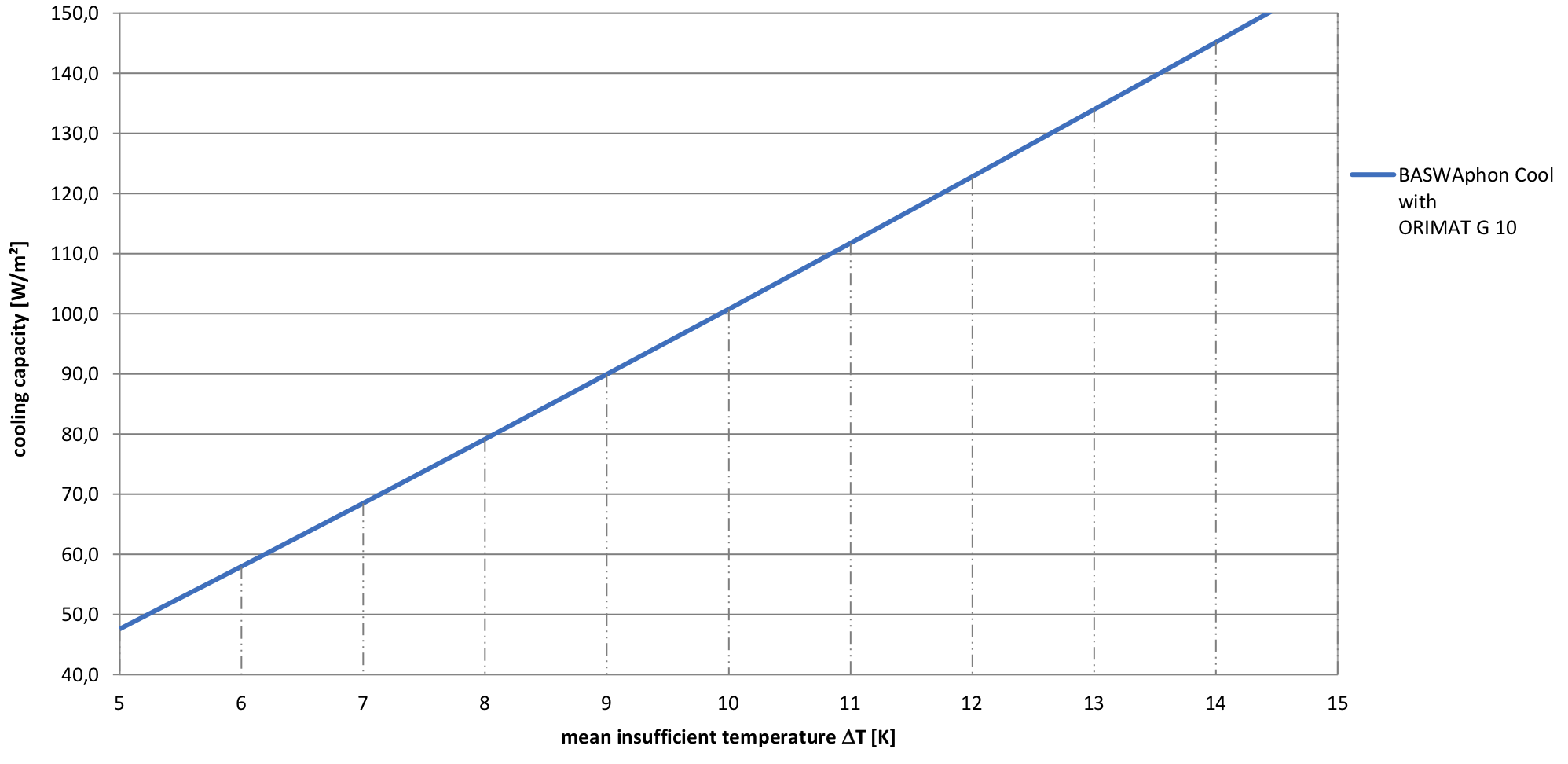

SPECIFIC COOLING CAPACITY ACC. TO DIN EN 14240

SPECIFIC COOLING CAPACITY ACC. TO DIN EN 14240

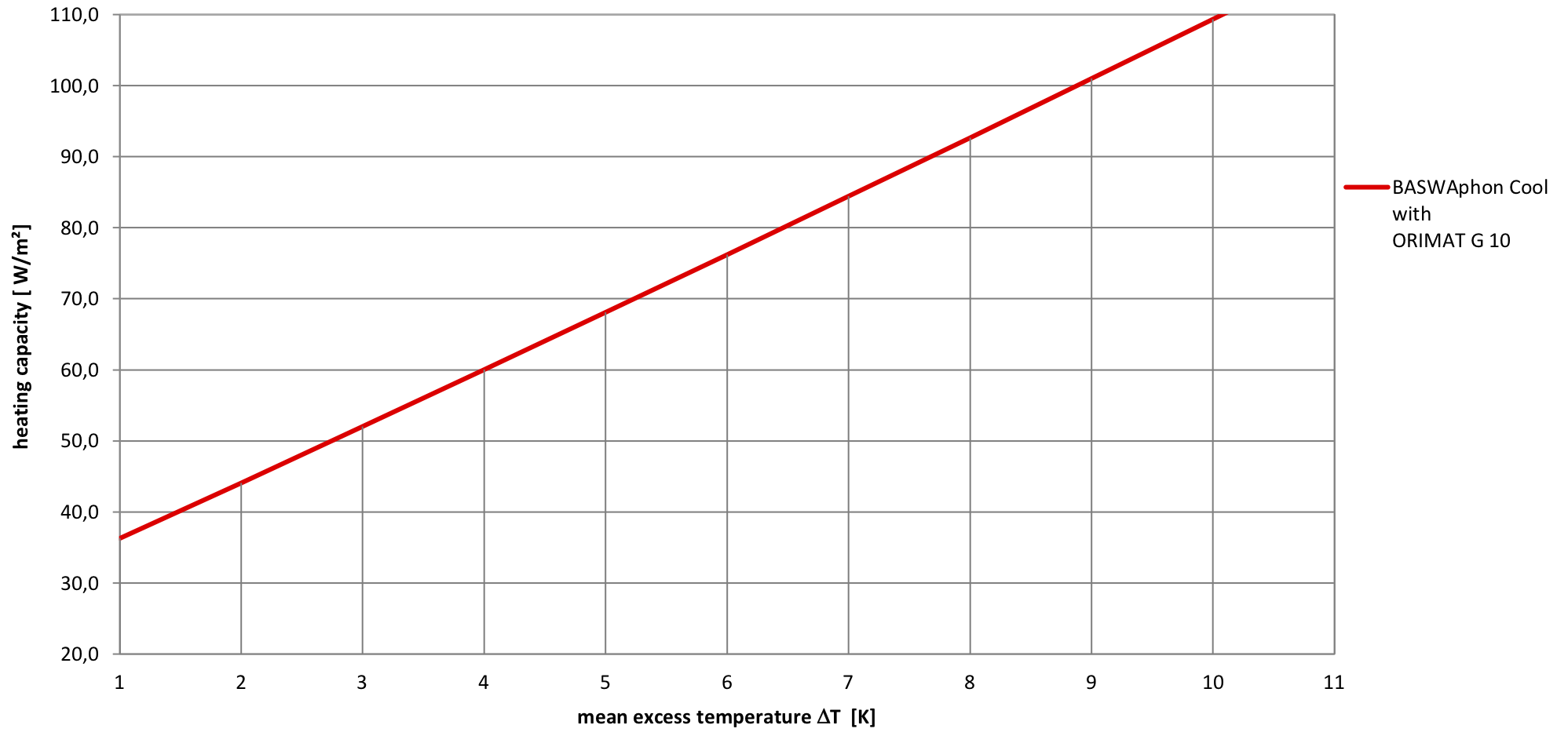

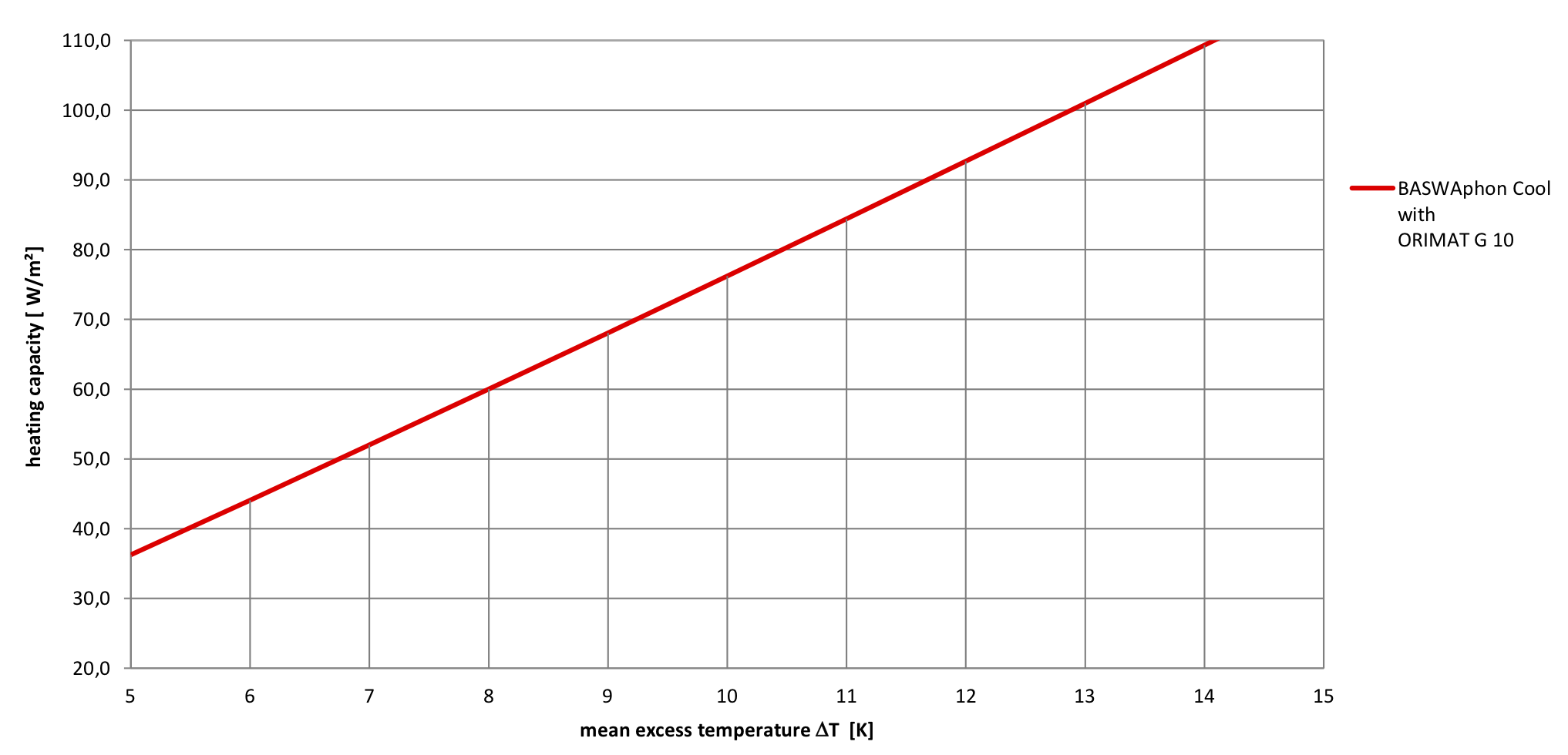

SPECIFIC HEATING CAPACITY ACC. TO DIN EN 14240 / 14037-2

SPECIFIC HEATING CAPACITY ACC. TO DIN EN 14240 / 14037-2
